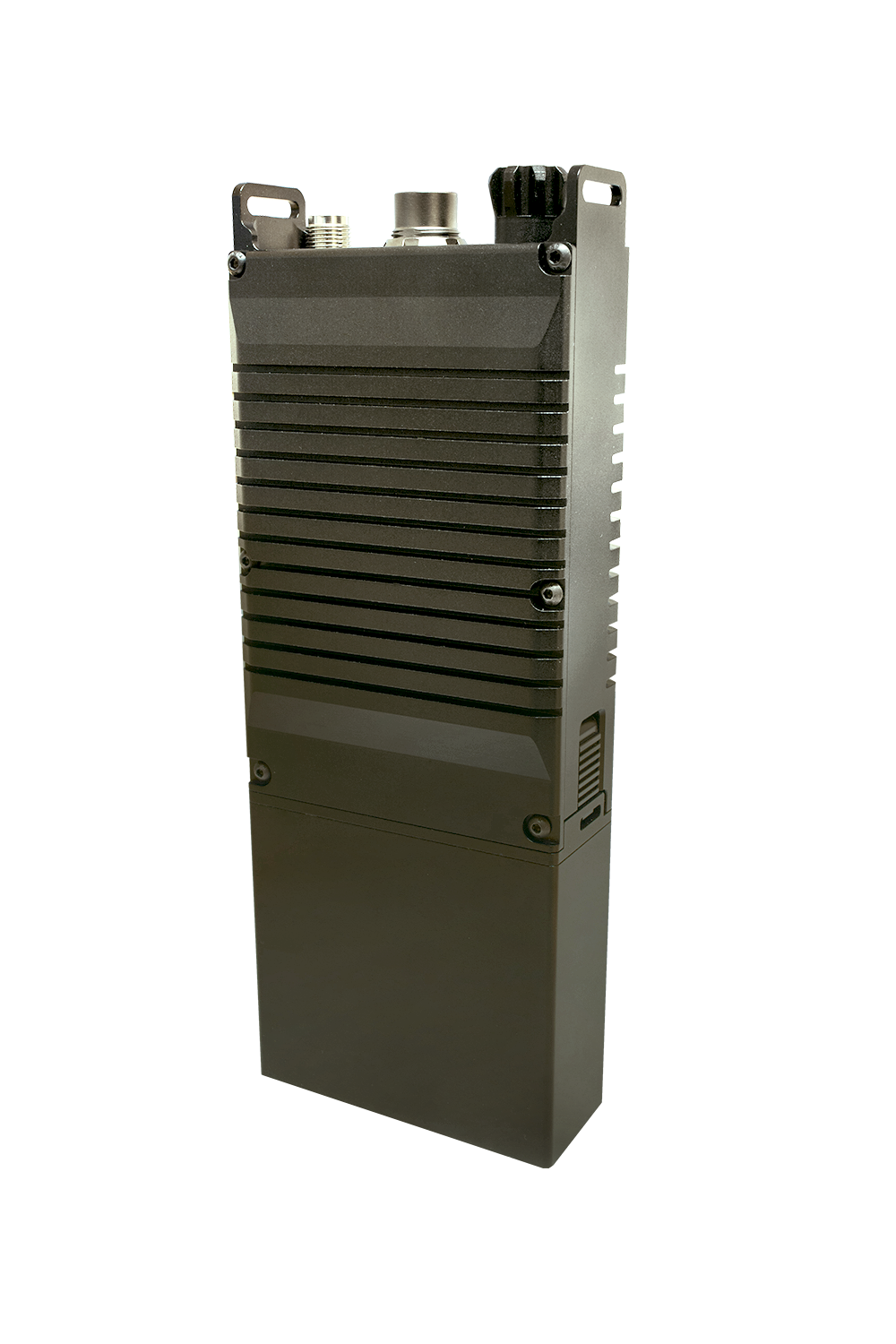

TACTICAL EDGE ROUTER TWR-207H
01
Tactical Edge Router TWR-207H is a handheld wireless router designed for portable and dismounted applications requiring seamless integration of various client equipment (smartphones, tablets, laptops etc) into IP networks, such as tactical Internet. TWR-207H allows Ethernet & USB interfacing and supports both IPv4 and IPv6 for unicast and multicast traffic. Equipped with broadband high power RF amplifier. TWR-207H enables operations across extremely broad frequency range supporting variable data rate, modulation and coding.
Highly flexible software defined radio (SDR) architecture State-of-the art mobile ad hoc network (MANET) ensures reliable, scalable and secure network centric communications for tactical networks operating under disconnected, intermittent, disturbed and bandwidth- limited conditions.
MAIN FEATURES
02- 4-Way channel select knob with Off and Zero position
- FHSS 1500 hops per second
- Blacklisting automatically skips contested frequencies
- L2 and L3 support
- Single-channel TDMA/CSMA radio
- Hi-Speed USB
- 100Mbit Ethernet
- Spectrum analyser
- TNC antenna
-
RF-Frontend
- L band dual band: 1000–1500 MHz / 1630–2575 MHz
- LB/L band dual band: 225–400 MHz / 1630–2575 MHz
TYPICAL APPLICATION
03
– Dismounted soldier – Human operated radio – Client equipment integration simplicity – Supports IP data, voice, and video – Supports ATAK and other BMS – Easy to configure and operate
